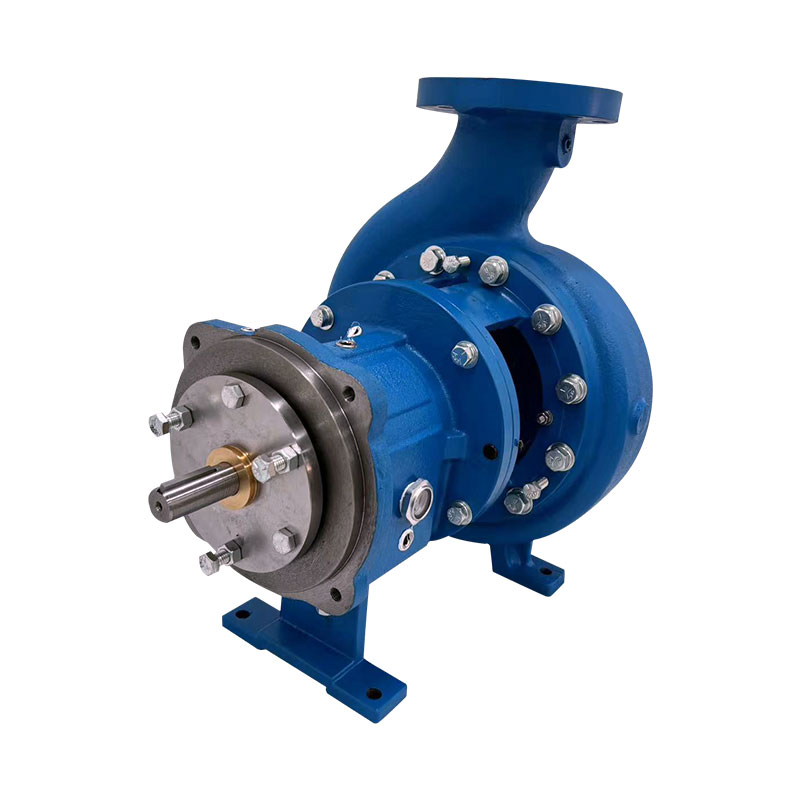

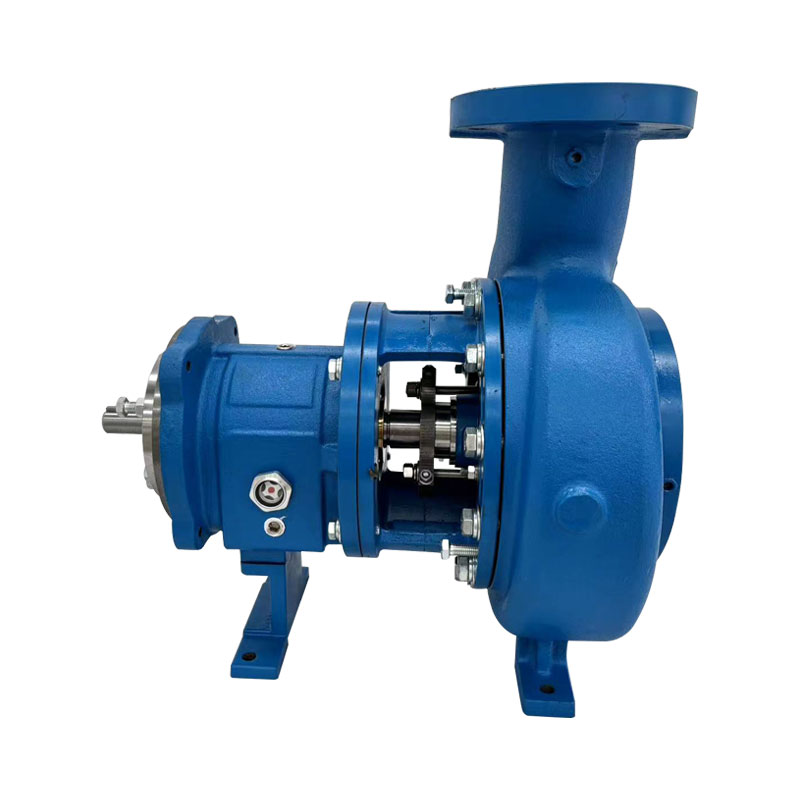

Furkey 3196 chemical process pump is specially designed for the transportation of demanding industrial fluids, featuring outstanding high flow rate and excellent temperature and pressure tolerance. The core advantage of this pump lies in its robust modular rear-pull design, combined with an interface that complies with the ANSI B73.1 standard, which enables rapid maintenance and wide interchangeability, significantly reducing the operation and maintenance costs throughout its entire life cycle.
Due to its powerful performance, this ANSI 3196 chemical process pump highly suitable for application in chemical production, petroleum refining, high-temperature heat medium circulation systems, and other heavy industrial processes that require corrosion resistance, high-temperature resistance, and long-term continuous operation.
Furkey is a leading enterprise in the fields of hydraulics, materials science, mechanical design, fluid dynamics and green energy. It has extensive experience in the design of bearings, seals, flanges and bases, and is capable of meeting the majority of pump application requirements in industries such as chemical engineering, food and beverage, industrial processes, mining, oil and gas, and power generation. We have rich production experience. For more details about the quotation sheet, please feel free to contact us!
You can find a more detailed specifications of this metallic chemical process pump in the below:
| Parameter | Range |
|---|---|
| Capacities | To 7000 GPM (1590 m³/h) |
| Heads | To 730 feet (223 m) |
| Temperatures | To 700° F (371° C) |
| Pressures | To 375 PSIG (26 bar) |
This horizontal chemical process pump has characteristics as follows:
Fully Open Impeller
Engineered Seal Chambers
• Patented Taperbore™ PLUS Seal Chamber
• BigBore™ Seal Chambers
Power Ends • Inpro VBXX-D Hybrid Bearing Isolators
• Premium Severe Duty Thrust Bearings
• LTi Power End for High Load Applications
Ease of Maintenance • Back Pull-out Design
• External Impeller Adjustment
• Maximum Interchangeability
Optimum Hydraulic Performance • Fully Open Impeller
• Full 50/60 Hz Coverage
Safety • Heavy Duty Casings
• Hydrostatic Testing of All Pressure Retaining Components
